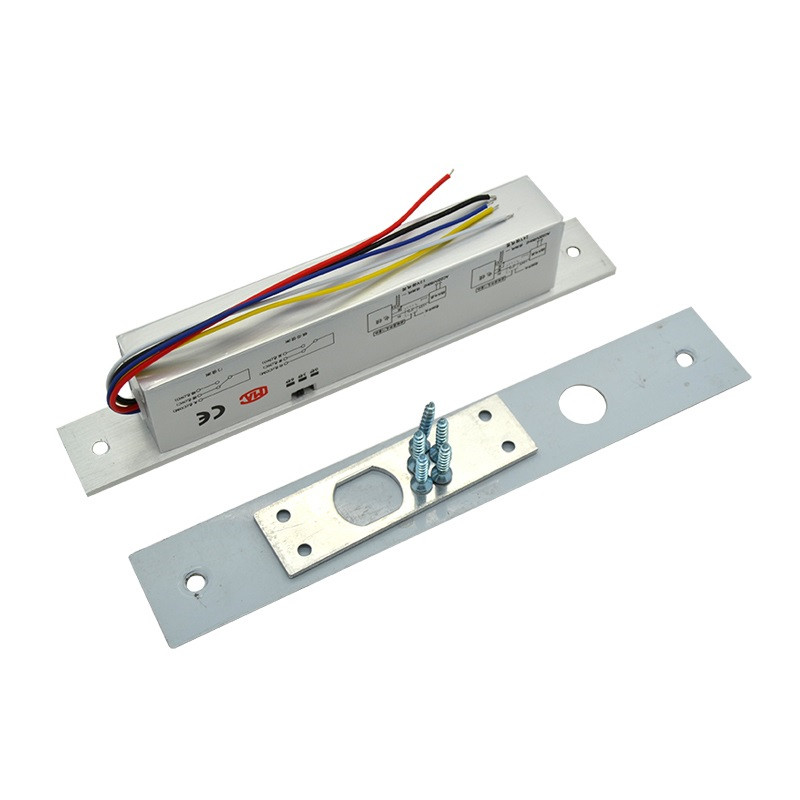

DAT-EB28T
5 Wires Narrow Frame Electric Drop Bolt Lock Low Temperature and Time Delay
Specifications:
- Size: 200L*28W*38H(mm)
- Material:Stainless Steel
- Voltage: DC12V±10%
- Start Current: 900mA
- Standby Current: 100mA
- Signal output, low temperature and 0-6S time delay
- Suitable For: Wood door, Metal door, Glass Door
- Operating temp: 10～+55℃(14~131F)
- Operating Humidity: 0～90%(non-condensing)
- Solid Bolt：Polishing housing, 1000kg Holding Force
- Face place material：Stainless Steel
- Special Designed：Tested to 500000 operations
- Signal:Door Status Output, NO/NC/COM
- Security Mode:unlock when power off
- Weight: 0.68kg
Advantages:
- 2 years warranty (warranty Service will be honored if the damage is not caused by human)
- CE & RoHS Certificate.
- Multiple Orientation, drop bolts will work horizontally or vertically
- Bolt position monitored
- Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)
- Multiple Orientation, drop bolts will work horizontally or vertically
- Power to Lock/ Power to Open
- Continuously Rated Solenoid
- Tamper Proof. Lock cannot be defeated by slipping a metal object between lock and striker plate
- Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position
- Thermal Protection. In the event of solenoid overheat, a thermal fuse will operate, eliminating any fire risk
